防爆厂家防爆挠性连接管DN20X1000防爆绕性管6分防爆连接管橡胶管

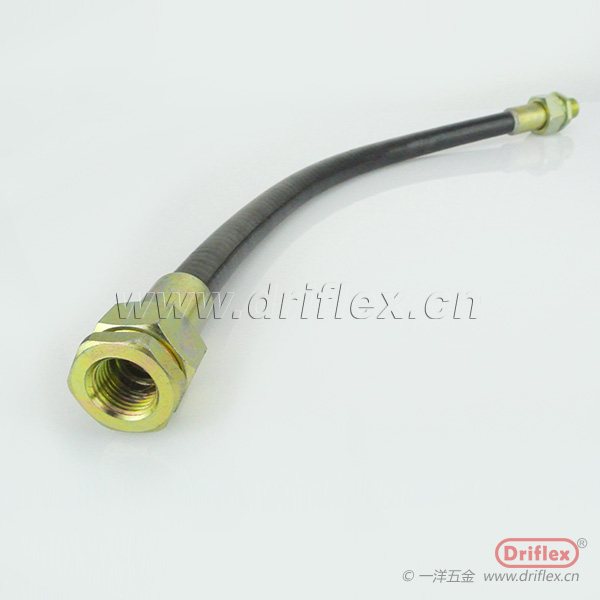

橡胶防爆挠性连接软管		Explosion Proof Flexible Pipe
材    质：金属软管+橡胶披覆
防爆等级：Exe Ⅱ
Materials:Steel + rubber
Explosive:Exe Ⅱ
型号	管内径	接头管螺纹	长度	弯曲半径
Part No.	I.D(mm)	（G")	Length(mm)	Bending Radius(mm)
EXR700xG1/2"	15.0	1/2"	700	80
EXR1000xG1/2"	15.0	1/2"	1000	80
EXR700xG3/4"	20.0	3/4"	700	110
EXR1000xG3/4"	20.0	3/4"	1000	110
EXR700xG1"	25.0	1"	700	145
EXR1000xG1"	25.0	1"	1000	145
EXR700xG1-1/4"	32.0	1-1/4"	700	160
EXR1000xG1-1/4"	32.0	1-1/4"	1000	180
EXR700xG1-1/2"	40.0	1-1/2"	700	210
EXR1000xG1-1/2"	40.0	1-1/2"	1000	210
EXR700xG2"	50.0	2"	700	250
EXR1000xG2"	50.0	2"	1000	250
EXR700xG2-1/2"	70.0	2-1/2"	700	350
EXR1000xG2-1/2"	70.0	2-1/2"	1000	350
EXR700xG3"	80.0	3"	700	400
EXR1000xG3"	80.0	3"	1000	400
EXR700xG4"	100.0	4"	700	500
EXR1000xG4"	100.0	4"	1000	500
适用范围：
1区 2区危险场所。
ⅡA、ⅡB、ⅡC 类爆炸性气体环境。
产品特点：
具有耐燃、耐腐蚀、耐水、耐老化、挠性良好、结构牢固、工作**等优点。
橡胶防爆挠性连接软管长度，可根据用户需要特殊加工。
配套碳钢内丝、外丝接头螺纹标准有: 英制G螺纹、美标NPT螺纹、
公制ISO等。
标注螺纹规格时应注明内、外丝螺纹。
产品符合GB3836-2000,IEC60079标准要求。
